Types of Pottery Clay: The Complete Guide for Beginners (2026)
The seven main types of pottery clay are earthenware, stoneware, porcelain, ball clay, fire clay, raku clay, and paper clay, plus air-dry clay as a non-fired option. Earthenware fires lowest and stays porous, stoneware is the durable middle ground most beginners should choose, and porcelain is the challenging white clay reserved for fine work. Your kiln, technique, and skill level decide which clay belongs in your studio.
The Clay Decision Framework: How to Choose Before You Buy
Most articles list clay types and leave you guessing which one to actually buy. We flip that order. Pick your clay the way professional studios do, by working backward from four constraints: the kiln you have access to, the technique you want to learn, your honest skill level, and what you intend to make.
Here is the decision sequence we suggest for any new potter. First, identify your kiln. An electric kiln rated to cone 6 cannot fire a cone 10 stoneware body. Second, match the clay to your forming method. A stiff sculpture clay will fight you on the wheel, and a smooth throwing porcelain will collapse on a tall slab build. Third, weigh your patience. Porcelain rewards experience and punishes beginners. Fourth, picture the finished piece. Functional mugs need vitrified clay that holds water. Decorative sculpture has no such requirement.
If you are still deciding which clay belongs in your first 25-pound bag, our guide on choosing beginner clay walks through specific brand recommendations once you have the basics here.
Earthenware Clay: The Oldest and Most Forgiving
Earthenware is the clay humans have used for roughly 30,000 years. It fires at low temperatures, stays porous after firing, and forgives nearly every beginner mistake.
Firing Temperature
Earthenware matures between cone 06 and cone 02, which translates to roughly 1830°F to 2050°F (1000°C to 1120°C). That low ceiling means almost any small electric kiln can handle it, and many school programs default to earthenware for exactly this reason.
Color After Firing
Most earthenware fires to a warm terra-cotta red or orange because of its iron content. White earthenware exists too, used in commercial dinnerware and decorative ware, but the red variety dominates studio practice.
Workability
Earthenware is soft, plastic, and slow to dry, giving you room to correct shapes and refine details. It tolerates rough wedging and forgives uneven walls. The downside arrives after firing: the clay stays porous and will absorb water unless glazed thoroughly, which makes it a poor choice for outdoor or high-stress functional ware.
Best Uses
Decorative pots, terra-cotta planters, hand-built sculpture, tiles, and any project where rustic warmth matters more than waterproof durability. Earthenware also shines for majolica, the traditional bright glaze decoration that needs a white tin-opaque base.
Beginner Verdict
Excellent for first projects, hand-building, and any class with a low-temperature electric kiln. We suggest it as a starter if you cannot reach mid-range firing temperatures.
Stoneware Clay: The Workhorse Most Beginners Should Pick
Stoneware is the practical choice for nearly every new potter with access to a kiln that fires above cone 5. It is durable, vitrifies fully, holds water without glaze in some bodies, and survives daily kitchen use.
Firing Temperature
Stoneware ranges from cone 5 to cone 10, or about 2167°F to 2381°F (1186°C to 1305°C). Mid-range stoneware (cone 5-6) has become the dominant studio standard in North American programs because it pairs durable results with reasonable kiln wear. Tony Hansen’s research at Digitalfire details how mid-fire stoneware bodies are formulated to vitrify cleanly in this window, which is why so many manufacturers now optimize their clay for cone 6.
Color After Firing
Stoneware varies from creamy buff to gray to chocolate brown depending on iron content and firing atmosphere. Speckled stoneware, with iron particles scattered through a buff body, has become hugely popular for the rustic look it lends to ceramic mugs and bowls.
Workability
Stoneware sits between the softness of earthenware and the stiffness of porcelain. It throws well on the wheel, coils cleanly, and tolerates the structural stress of larger forms. Most stoneware also resists cracking during drying better than porcelain.
Best Uses
Functional dinnerware, mugs, bowls, vases, garden pots that need to survive winter, and durable sculpture. If you want pottery you can actually eat off of for years, stoneware is the answer.
Beginner Verdict
This is our top suggestion for almost every beginner with kiln access. The forgiving plasticity, the durable end product, and the wide availability of mid-range commercial bodies make stoneware the path of least resistance to results you will be proud of.
Porcelain Clay: Beautiful, Demanding, Not for Week One
Porcelain is the white, translucent, high-fire clay used for the finest historical ceramics. It is also the clay most likely to frustrate a beginner.
Firing Temperature
True porcelain fires at cone 9 to cone 12, around 2300°F to 2455°F (1260°C to 1346°C). Some commercial “porcelains” are formulated for cone 6 to widen access, though purists argue these mid-fire bodies sacrifice the translucency that defines real porcelain.
Color After Firing
The signature pure white, sometimes with a subtle blue or gray cast depending on the body. When fired thin enough, porcelain becomes genuinely translucent, a property no other clay shares.
Workability
Porcelain is the hardest clay to work with. It has shorter plasticity than stoneware, meaning it tires quickly under your hands. It cracks during drying if you rush. It warps in the kiln. It shrinks more aggressively than other clays (12 to 14 percent total shrinkage is common). And it shows every fingerprint and tool mark, leaving no place to hide poor technique.
Best Uses
Fine teacups, refined dinnerware, sculptural work where translucency matters, and porcelain jewelry. It is the clay of choice when the clay itself, not the glaze, should be the star.
Beginner Verdict
Skip it for your first six months. Once you can throw a consistent cylinder in stoneware and your trimming is clean, then graduate to porcelain. Trying it earlier will dent your confidence more than your wallet.
Ball Clay: The Ingredient You Rarely Buy Alone
Ball clay is one of the most plastic clays in existence, but you almost never use it pure. It is a component in nearly every commercial clay body sold, blended in to add workability to less plastic ingredients.
On its own, ball clay shrinks too much (around 20 percent) and warps badly. Mixed into a stoneware or porcelain recipe at 15 to 25 percent, it gives the body the throwing-friendly plasticity that makes a clay feel good in your hands. When you see a clay body described as “smooth” or “plastic,” ball clay is usually the reason. The Ceramic Arts Network has covered this formulation logic in depth, and their archives at Ceramic Arts Network are worth bookmarking once you start mixing your own clay bodies.
Fire Clay: The High-Temperature Specialist
Fire clay is a coarse, refractory clay that withstands extreme temperatures. It is rarely used alone for pottery, but it appears in many cone 10 stoneware recipes to add texture, tooth, and thermal stability.
The most common studio use for pure fire clay is hand-built kiln furniture, large architectural sculpture, and any piece that needs to survive multiple firings or thermal shock. The texture is gritty, which is great for slab work where the grog adds structural strength but rough on hands during long throwing sessions. Practical tip: if your stoneware feels tough enough to throw large but smooth enough to refine, it likely contains fire clay.
Raku Clay: Built for Thermal Shock
Raku clay is engineered for a specific firing process. Raku firing, developed in 16th-century Japan and adapted by Western potters in the mid-20th century, involves pulling red-hot pots out of the kiln at peak temperature and either plunging them into combustible materials (the Western adaptation) or letting them cool quickly in the open air (the traditional Japanese method).
That violent temperature change would shatter most clay bodies. Raku clay survives because it contains substantial grog, the pre-fired ground ceramic particles that act like rebar inside the clay, holding it together when other clays would crack.
Use raku clay for raku firing, naked raku, horsehair raku, and any other low-temperature smoke-firing process. Do not use raku clay for functional pottery, the porosity makes it unsafe for food contact.
Paper Clay: Fiber-Reinforced for Delicate Work
Paper clay is a relatively recent invention. It is regular clay mixed with cellulose fiber, usually shredded toilet paper or processed cotton fiber. The fibers create an internal scaffold that gives the clay astonishing properties: you can attach bone-dry pieces to wet pieces without cracking, you can build impossibly thin walls, and you can repair fired pieces by adding fresh paper clay and re-firing.
It is the clay of choice for delicate hand-built sculpture, large slab constructions, and architectural details that would crack in standard clay. The fibers burn out during bisque firing, leaving a slightly more porous (but still functional) finished piece. Many sculptors keep both stoneware and paper-stoneware in the studio, switching between them depending on the assembly challenge in front of them.
Air-Dry Clay: Not a Pottery Clay at All
Let us be direct: air-dry clay is not pottery clay. It is a craft material that hardens by water evaporation, never reaches the chemical transformation of firing, and never becomes true ceramic. It cannot hold water, cannot be safely used for food, and crumbles or dissolves if left damp.
Air-dry clay has its place for kids’ crafts, jewelry prototypes, costume props, and decorative pieces that will never touch liquid. But if someone tells you “I made pottery without a kiln” and shows you a painted air-dry clay bowl, they made craft, not pottery. For real pottery, you need fire.
Master Comparison Table: All Clay Types at a Glance
| Clay Type | Firing Range (°F/°C) | Shrinkage % | Workability | Best For | Beginner Friendly? |
|---|---|---|---|---|---|
| Earthenware | 1830-2050°F / 1000-1120°C | 5-8% | Soft, very plastic | Decorative pots, planters, tiles, majolica | Yes, excellent for first projects |
| Stoneware | 2167-2381°F / 1186-1305°C | 10-13% | Medium, very forgiving | Functional dinnerware, mugs, durable ware | Yes, our top suggestion for most beginners |
| Porcelain | 2300-2455°F / 1260-1346°C | 12-14% | Stiff, short, demanding | Fine teacups, translucent ware, jewelry | No, wait until month six or later |
| Ball Clay | Used as ingredient (varies) | ~20% alone | Extremely plastic, not used alone | Component in clay bodies, slip casting | Not applicable, not used pure |
| Fire Clay | 2350-2700°F / 1290-1480°C | 5-10% | Coarse, gritty, refractory | Kiln furniture, large sculpture, recipe additive | Limited, intermediate and above |
| Raku Clay | 1650-1850°F / 900-1010°C (raku fire) | 5-8% | Heavily grogged, gritty | Raku firing, naked raku, sculpture | Workable, but raku process is intermediate |
| Paper Clay | Matches base clay (cone 04-10) | Varies with base | Strong wet, allows wet-to-dry joins | Delicate sculpture, thin slabs, repairs | Yes for sculpture, unique forgiveness |
| Air-Dry Clay | Not fired (air cures only) | Minimal | Soft, smooth, dries quickly | Craft projects, kid’s projects, props | Yes, but it is craft, not pottery |
Clay vs. Technique: Match Your Clay to How You Build
Different clays behave differently under different forming methods. A clay that throws beautifully on the wheel may slump on a tall slab, and a sculpture clay may resist the centering pressure of the wheel. Pick the clay that matches your dominant technique, then learn to wedge it properly. (Our guide on wedging clay technique covers the spiral and ram’s head methods that matter most.)
| Technique | Best Clay Choice | Why | Difficulty |
|---|---|---|---|
| Wheel Throwing | Smooth mid-range stoneware (cone 6) | Plastic enough to center easily, strong enough to throw tall, durable when fired | Moderate, the most common starting point |
| Hand-Building (coil, slab, pinch) | Grogged stoneware or earthenware | Grog adds structural strength, reduces cracking on joins and slabs | Forgiving, great for absolute beginners |
| Sculpture | Paper clay or heavily grogged sculpture clay | Paper fiber or grog supports thin walls, complex armatures, wet-to-dry joins | Variable, depends on scale and detail |
For deeper guidance on the building methods themselves, our overview of hand-building techniques walks through pinch, coil, and slab in detail.
Kiln Type Matching: What Your Kiln Will and Won’t Fire
This is the constraint most beginners discover too late. The clay you bought may not match the kiln you have access to. Before you buy a 25-pound bag, confirm the cone rating of every kiln you can fire in.
| Kiln Type | Best Clay Types |
|---|---|
| Electric Kiln (cone 6 standard) | Earthenware, mid-range stoneware (cone 5-6), cone 6 porcelain, paper clay matched to base |
| Electric Kiln (cone 10 capable) | All of the above plus high-fire stoneware (cone 9-10) and true porcelain |
| Gas Kiln | High-fire stoneware, true porcelain, reduction-fired bodies that develop their color from atmosphere (gas allows reduction) |
| Wood Kiln | Heavily grogged high-fire stoneware, woodfire-specific clay bodies designed for ash deposit and flame paths |
| Raku Kiln | Raku clay only, the thermal shock will destroy other bodies |
| No Kiln (air-dry only) | Air-dry clay or polymer clay, no fired-clay options exist without heat |
If you are still shopping for your first kiln, our breakdown of kiln types for beginners covers the cost, footprint, and electrical requirements of each option.
What Happens Between Wet Clay and Finished Pot
Knowing how clay changes during firing helps you predict failures before they happen. After forming and drying, pottery typically goes through bisque firing at a lower temperature first, which removes chemical water and burns out organic material without fully vitrifying the clay. This makes the piece porous enough to absorb glaze evenly, then a second glaze firing at higher temperature melts the glaze and matures the clay body.
Each clay type behaves differently through this process. Earthenware shrinks the least but stays porous. Stoneware vitrifies, fusing into a hard, water-resistant body. Porcelain shrinks the most and becomes glassy and translucent. Understanding these transitions explains why a beautifully thrown porcelain bowl can warp into a leaning tower at cone 10, and why an earthenware tile may stay perfectly flat through firing.
Where to Buy and How to Store Clay
Reputable ceramic suppliers carry every clay type discussed here, usually in 25-pound or 50-pound boxes. Look for moisture-tight plastic bags inside cardboard boxes. Store unopened clay in a cool, dark place; it lasts indefinitely as long as it stays moist. Once opened, wrap aggressively in plastic and keep in an airtight tub. Dried-out clay can usually be reclaimed by breaking it into chunks, soaking in water, and re-wedging, though some clay bodies lose plasticity after a full dry-out cycle. For more on supplier comparisons and reclaim methods, The Ceramic Shop clay body reference guide offers a useful resource for clay body specifications and ordering guidance.
Frequently Asked Questions
What is the best clay for beginners to start with?
Mid-range stoneware fired to cone 6 is our top suggestion for almost every beginner with kiln access. It is forgiving on the wheel, strong enough for hand-building, durable as finished functional ware, and available from every major supplier. If your kiln only reaches low-fire temperatures, earthenware is an excellent alternative for decorative work.

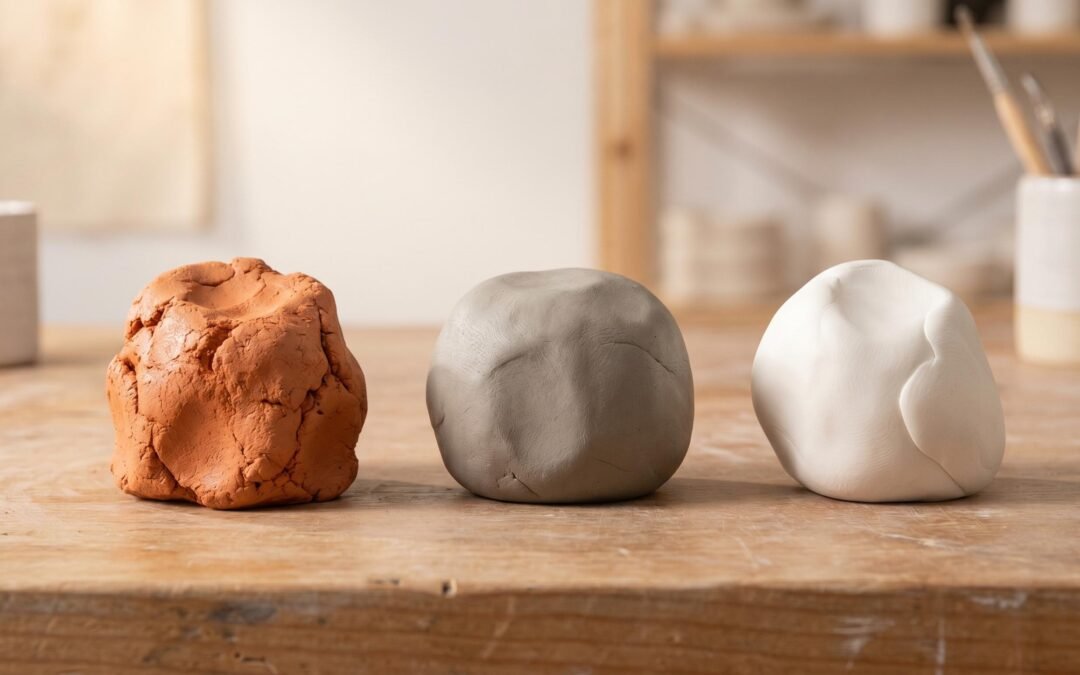

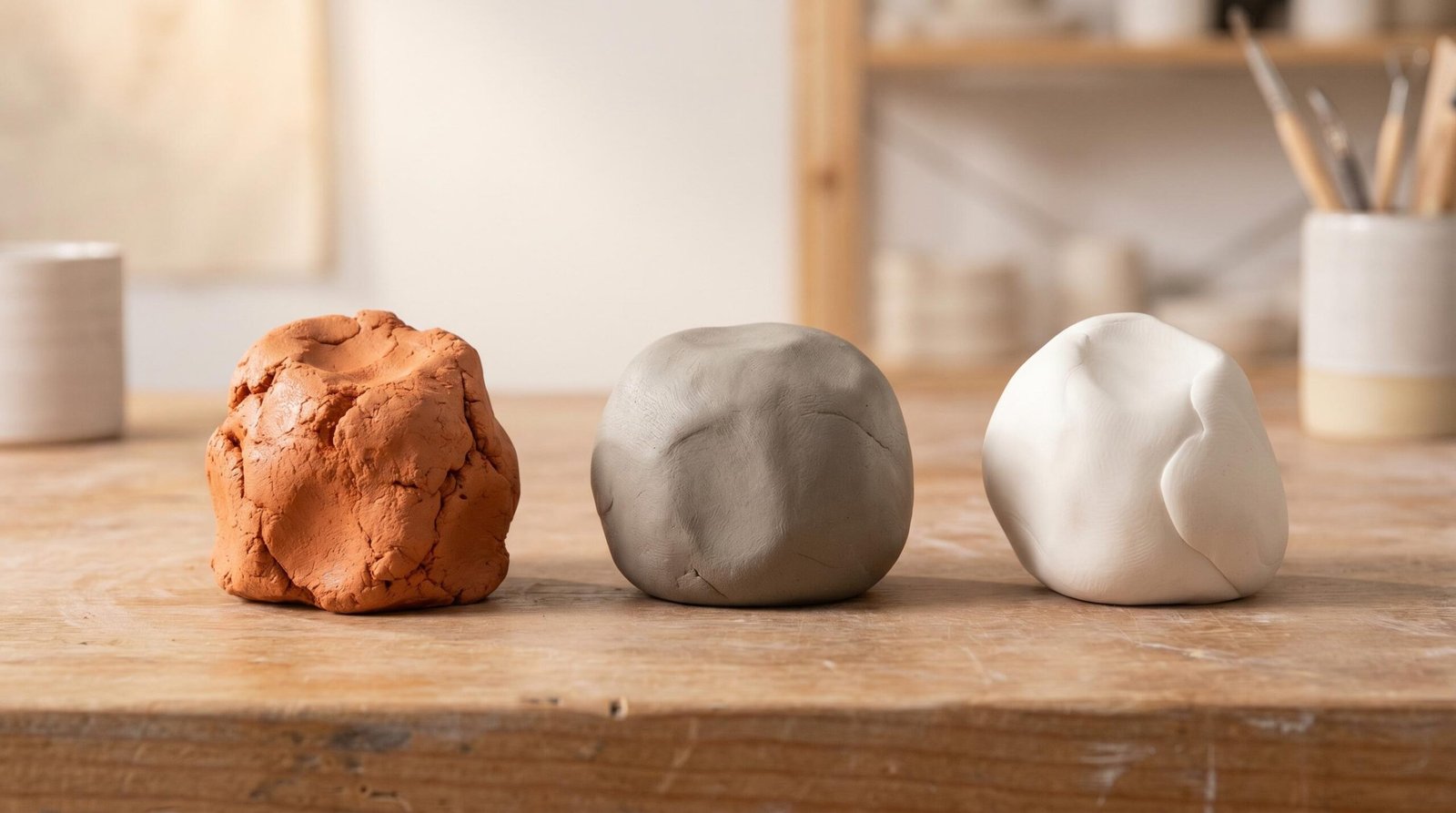

What is the difference between earthenware, stoneware, and porcelain?
The three are distinguished by firing temperature and the resulting density. Earthenware fires lowest (around 1830-2050°F), stays porous, and usually appears red or buff. Stoneware fires hotter (2167-2381°F), vitrifies into a durable water-tight body, and ranges from buff to brown. Porcelain fires hottest (2300-2455°F), becomes white and often translucent, and is the most challenging to work with. Each requires its own kiln capability and rewards different skill levels.
Can I use any clay on a pottery wheel?
Technically yes, practically no. Wheel throwing favors smooth, plastic clays with medium grog or no grog. Heavily grogged sculpture clay and fire clay can be thrown but will tear up your hands during long sessions. Porcelain throws well but punishes any technique mistake. The safest wheel-throwing clay for beginners is a smooth or lightly grogged mid-range stoneware.
What clay fires at the lowest temperature?
Earthenware fires at the lowest temperature among true pottery clays, maturing between cone 06 and cone 02, roughly 1830-2050°F (1000-1120°C). Some specialty low-fire bodies mature even lower at cone 010 (1665°F), used mainly for terra-cotta sculpture and tile work. Raku firing happens at low temperatures too, though raku is more of a process than a temperature category.
How do I know what cone (temperature) to fire my clay?
Every bag of commercial clay lists its recommended firing range as a cone number, usually printed on the label. Match this range to your kiln’s capability and your glaze’s firing temperature. If you mix your own clay body, fire test tiles at several cones and inspect for warping, color, and absorption. As a rule, fire your clay to the temperature where it vitrifies but does not slump. Witness cones placed in the kiln during firing confirm the temperature was actually reached.
Can I mix different types of pottery clay?
You can, but with caution. Mixing two clays with similar firing ranges and shrinkage rates usually works fine, and many studios blend stoneware bodies to fine-tune workability. Mixing clays with different firing temperatures or shrinkage rates almost always causes cracking, warping, or kiln disasters. Never combine earthenware with stoneware in the same piece, the shrinkage mismatch will tear it apart during firing.
